• 225/70R19.5G BSW tires -inc: (2) front all-season & (4) rear all-season tires
• 19.5" argent painted steel wheels
• Chrome steel front bumper w/grained MIC top cover
• Front fender vents
• Chrome grille surround w/medium platinum insert
• Dual beam jewel headlights
• 3-blink lane change signal
• Roof clearance lights
• Manual telescoping trailer tow mirrors w/pwr heated glass, integrated clearance lights & turn signals & 2-way fold, heated convex spotter mirror
• Solar tinted glass
• Rear door/window privacy tinted glass
• Fixed rear window
• Variable intermittent windshield wipers
• Front license plate bracket
• Black door handles
• Underhood service light

• AM/FM stereo w/CD/MP3 player -inc: aux input jack, digital clock, (4) speakers
• Audio input jack

• Manual air conditioning -inc: black vents w/chrome rings

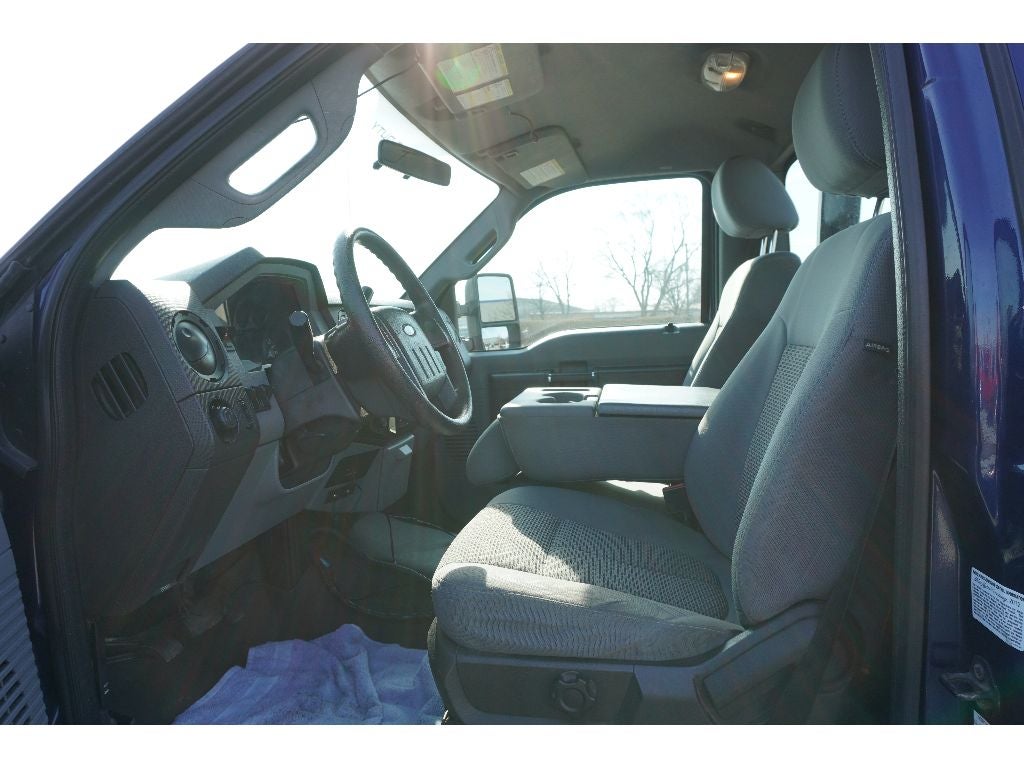

• Cloth 40/20/40 split bench seat -inc: 20% center under seat storage, center armrest, storage, cup holders
• 4-way adjustable driver/front-passenger headrests
• Manual driver lumbar support
• Color-coordinated carpet full floor covering
• Color-coordinated carpeted floor mats
• Color-coordinated scuff plates

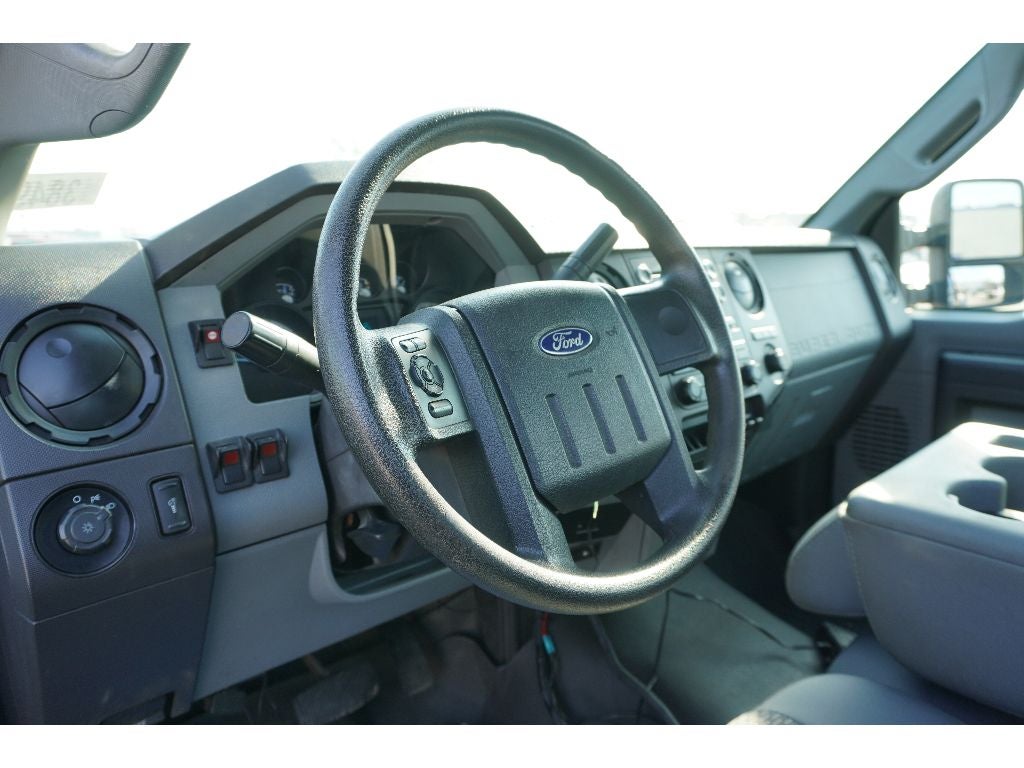

• Tilt & telescoping steering wheel/column
• Black vinyl steering wheel w/cruise controls

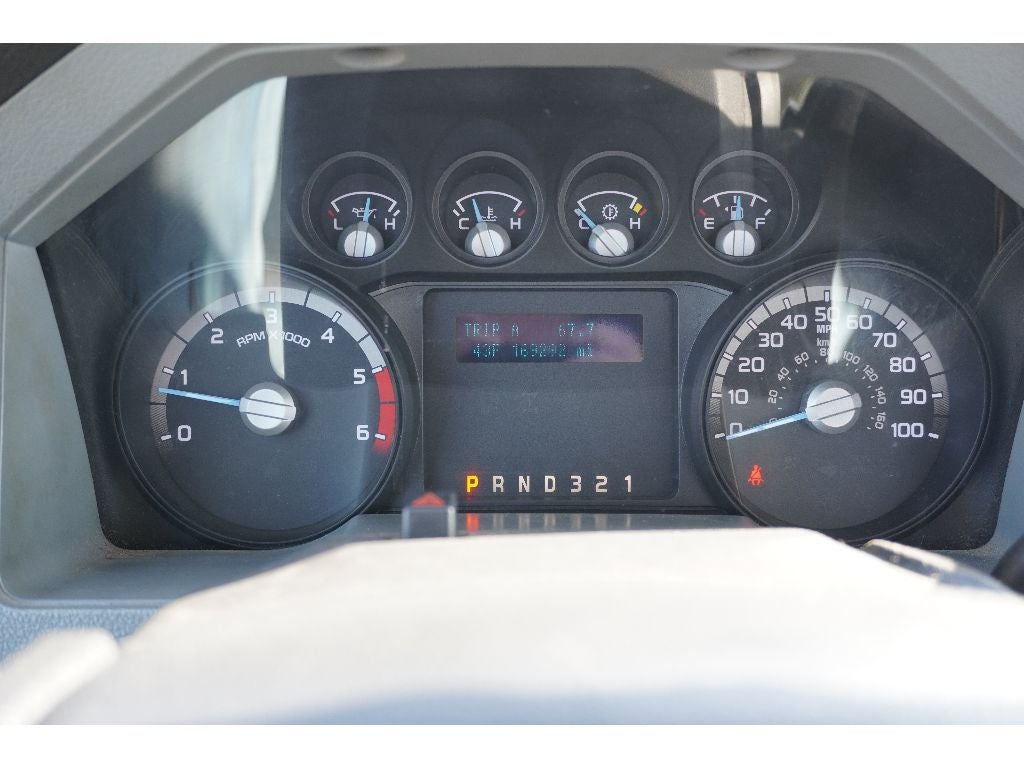

• Instrumentation -inc: multifunction switch message center w/ice blue lighting
• Oil minder system
• Inside hood release
• Accessory delay
• SecuriLock anti-theft ignition system
• Pwr door locks w/backlit switches
• Remote keyless entry w/(2) key fobs & perimeter anti-theft alarm

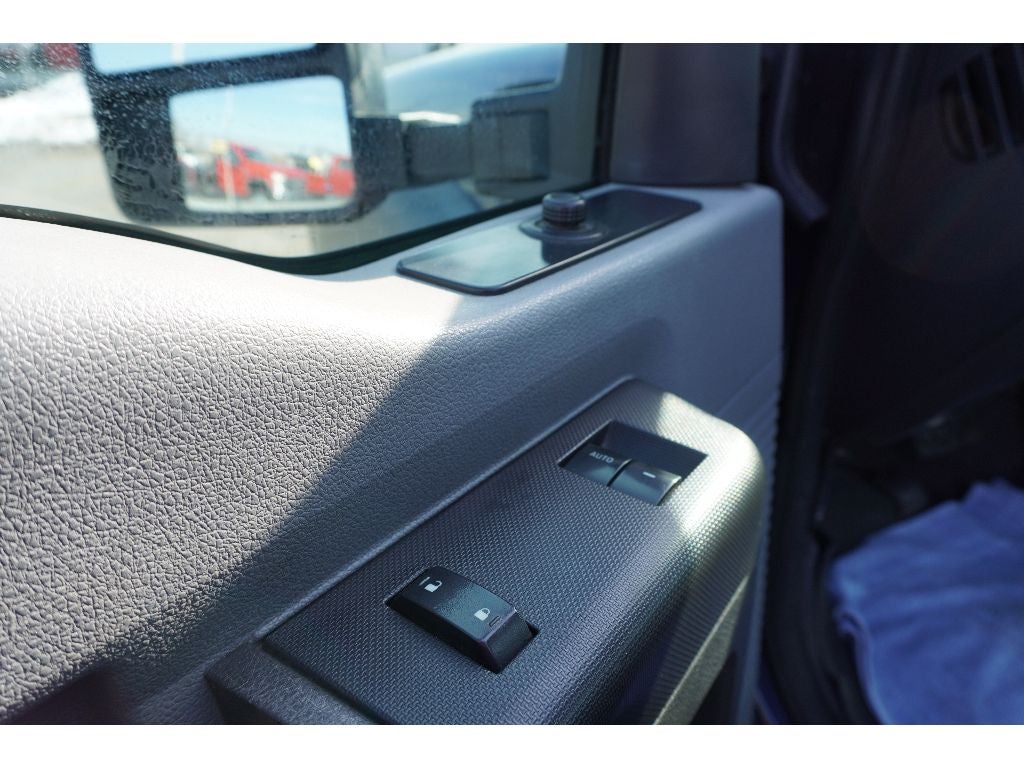

• Pwr windows -inc: driver-side one-touch down, backlit switches
• Cruise control
• Perimeter anti-theft alarm
• Dash-top tray
• Color-coordinated instrument panel -inc: glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches
• I/P mounted dual cup holders
• Secondary glove box
• Auxiliary pwr point
• Dual front grab handles
• Front passenger roof ride handles
• Color-coordinated molded cloth headliner
• 11.5" day/night rearview mirror
• Color-coordinated door trim panel -inc: soft armrest, grab handle, reflector, molded upper applique, upper & lower map pockets
• Color-coordinated vinyl sun visors -inc: LH pocket, RH covered mirror
• Door activated dome lamp w/delay, I/P switch operation
• Dual map lights
• Dual color-coordinated coat hooks

• Anti-lock braking system (ABS)
• Driver/front passenger frontal, side & curtain airbags
• Passenger side airbag deactivation switch
• Color-coordinated 3-point safety belts w/front outboard height adjustment
• Child tethers on all passenger seats
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Dual-note electric horn

6.8L SOHC EFI TRITON 30-VALVE V10 ENGINE

• (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 3615
• Curb Weight - Rear (lbs): 2908
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 1.06
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.5 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 15.4 x 0.5
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 3750
• Rear Tire Capacity (lbs): 3970
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 42.3
• Turning Diameter - Wall to Wall (ft): 44.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 140.8
• Length, Overall w/o rear bumper (in): 226.5
• Width, Max w/o mirrors (in): 93.9
• Height, Overall (in): 80.4
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 118.9
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 33.7
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Summary

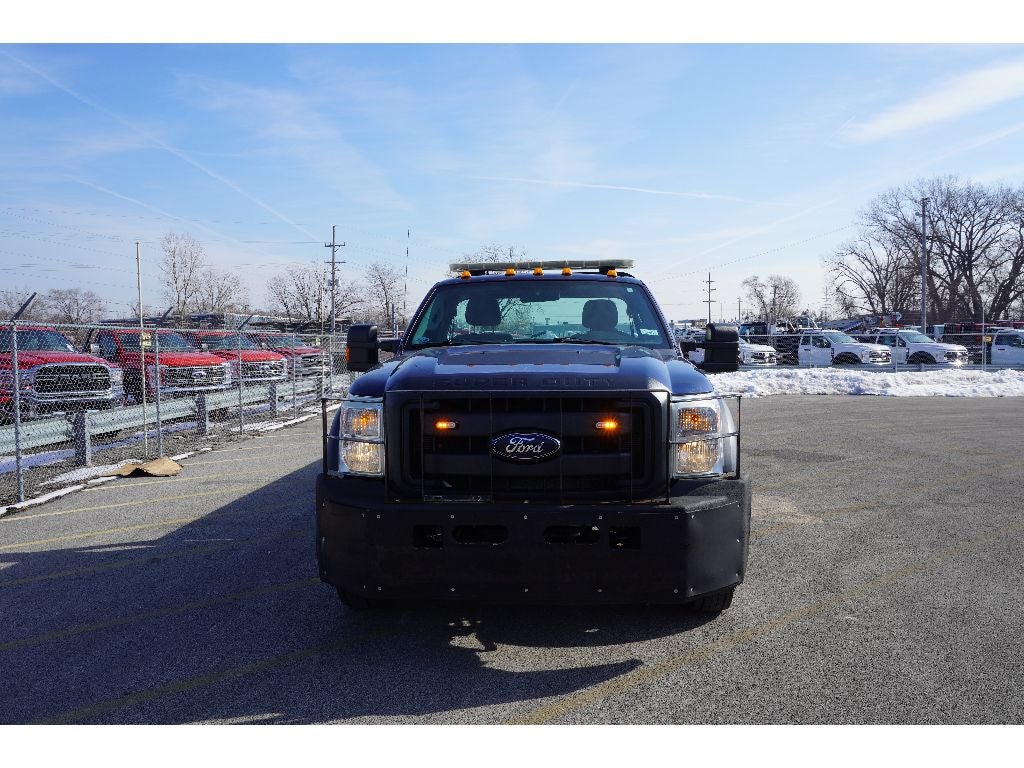

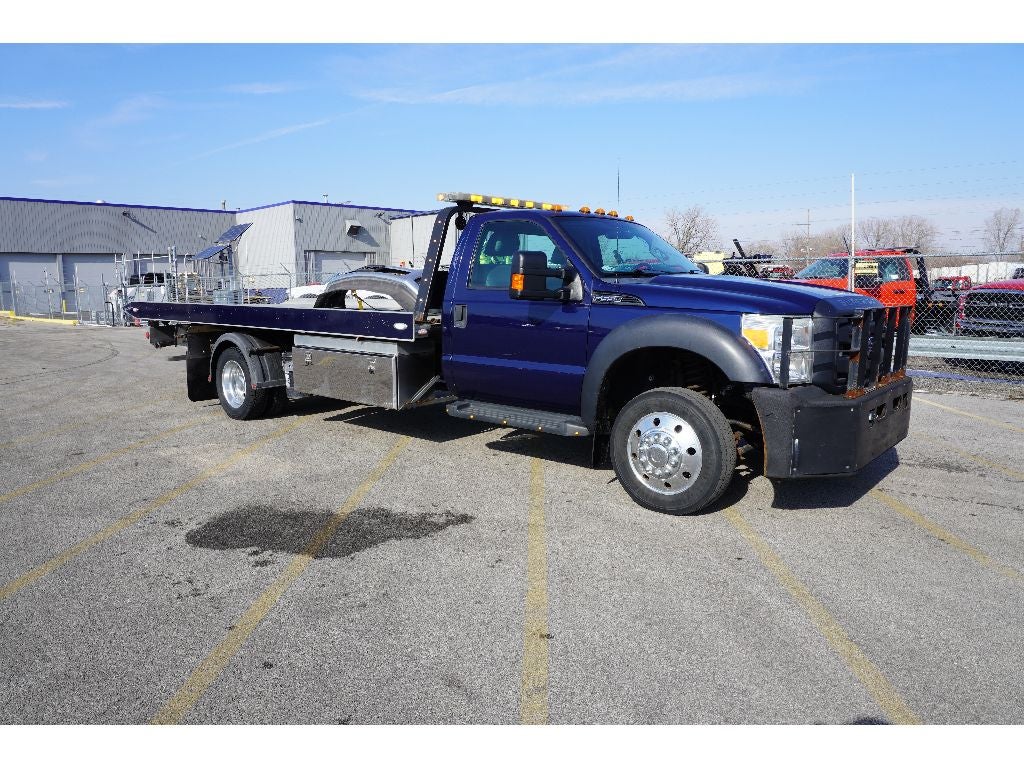

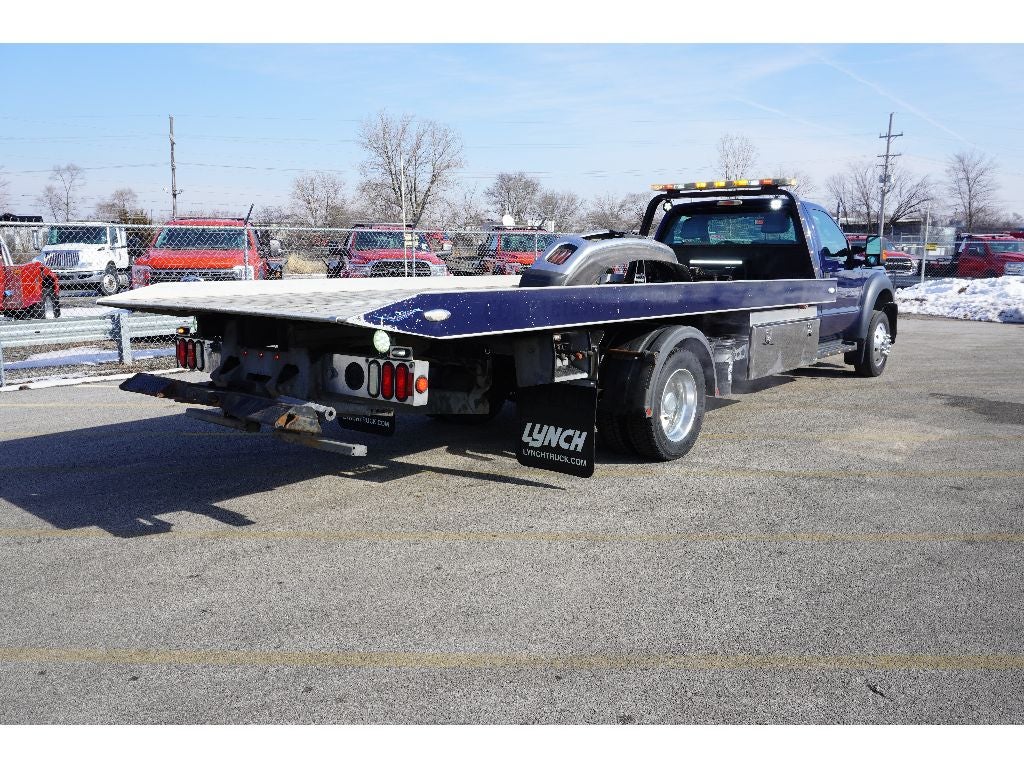

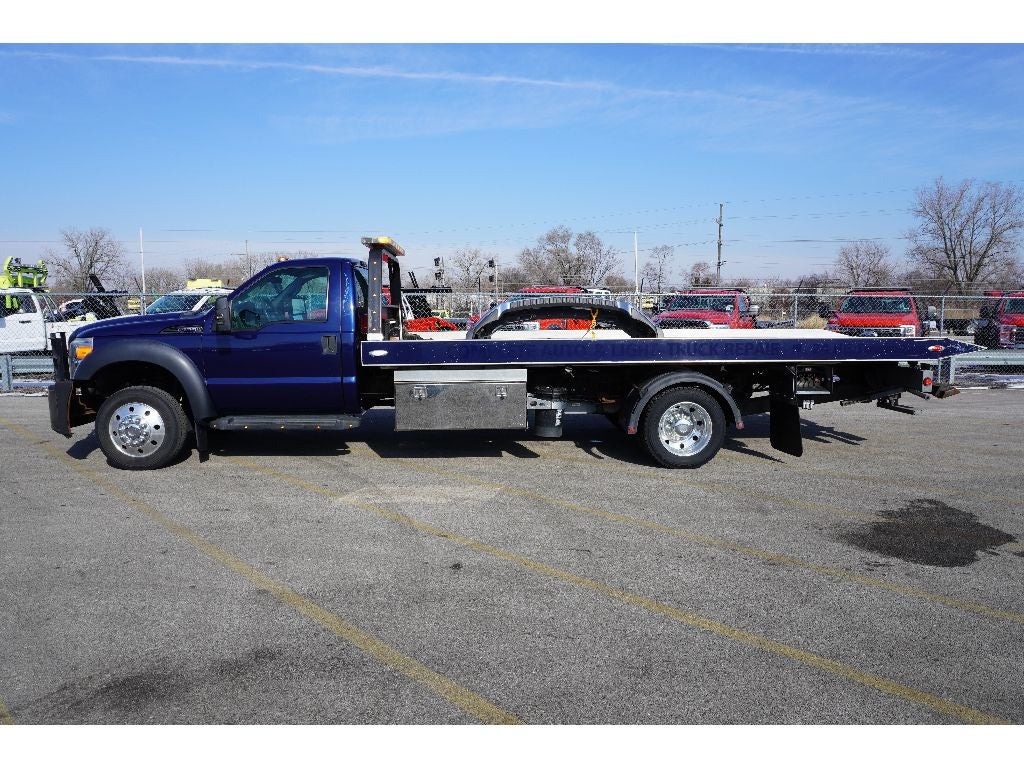

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: Regular Cab Chassis Cab
• Body Code: 141" WB
